INCH-POUND
MIL-PRF-22885/55G
28 April 2004
SUPERSEDING
MIL-PRF-22885/55F
17 MARCH 1999
PERFORMANCE SPECIFICATION SHEET
SWITCH, PUSHBUTTON, ILLUMINATED, COLOR FILTER FOR, LAMP-CAP DESIGN
This specification sheet is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the color filter described herein shall
consist of this specification sheet and MIL-PRF-22885.
.025-.020
WALL THICKNESS
A
.320 ± .003
DIA
.292 ± .003
DIA
SPHERICAL
RADIUS
.030
A
.176
SECTION A-A
Inches
mm
Inches
mm
4.47
.176
0.08
.003
7.42
.292
0.51
.020
8.13
.320
0.64
.025
0.76
.030
NOTES:
1. Dimensions are in inches. Metric equivalents are given for general information only.
2. Unless otherwise specified, tolerance is ±.010 (.25 mm).

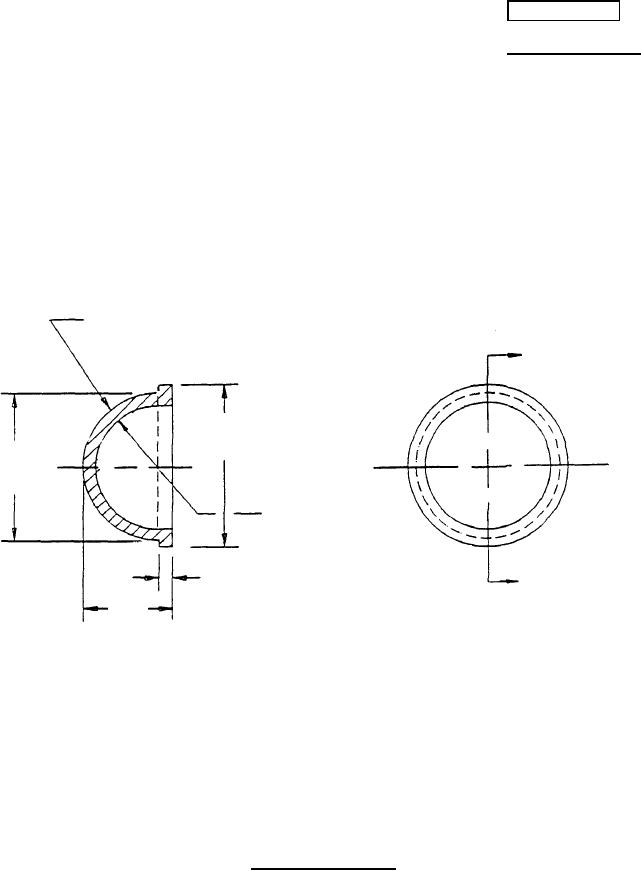

FIGURE 1. Design and construction.
AMSC N/A
FSC 5930
