MIL-PRF-22885/54E
28 April 2004
SUPERSEDING
MIL-PRF-22885/54D
17 MARCH 1999
PERFORMANCE SPECIFICATION SHEET
SWITCH, PUSHBUTTON, ILLUMINATED, COLOR FILTER FOR, PLANAR DESIGN
This specification sheet is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the color filter described herein shall
consist of this specification sheet and MIL-PRF-22885.
.023 RAD TYP
.273
.273
.584
.273
.584
.584
.040
.040
.040
STYLE A
STYLE B
STYLE C
Inches
mm
0.58
.023
1.02
.040
6.93
.273
14.83
.584
NOTES:
1. Dimensions are in inches. Metric equivalents are given for general information only.
2. Unless otherwise specified, tolerance is ±.005 (.13 mm).

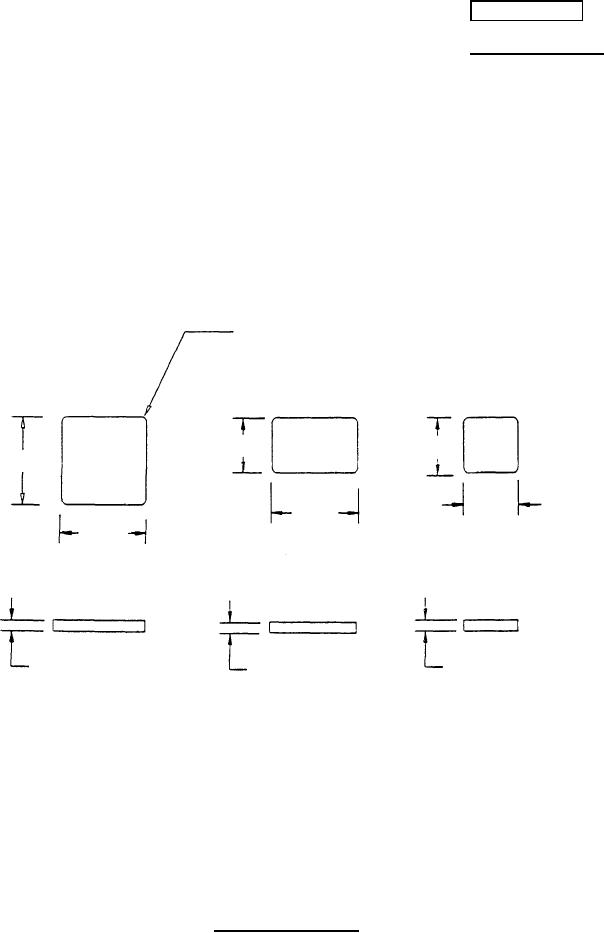

FIGURE 1. Design and construction.
