MIL-DTL-9395/29C
MS3476
SAE-AS4395-4
Inches
mm
.03
0.76
.050
1.27
.06
1.52
.125
3.18
.4375
11.11
.68
17.27
.688
17.48
1.00
25.40
1.047
26.59
1.46
37.08
1.60
40.64
1.75
44.45
2.27
56.57
NOTES:
1. Dimensions are in inches.
2. Metric equivalents (to the nearest .01 mm) are given for general information only and are based upon
1 inch = 25.4 mm).
3. Unless otherwise specified, tolerance is ±.005 (.13 mm).
4. A minimum of two wrench flats is needed.
5. Ports permanently marked as shown.
Configuration 3

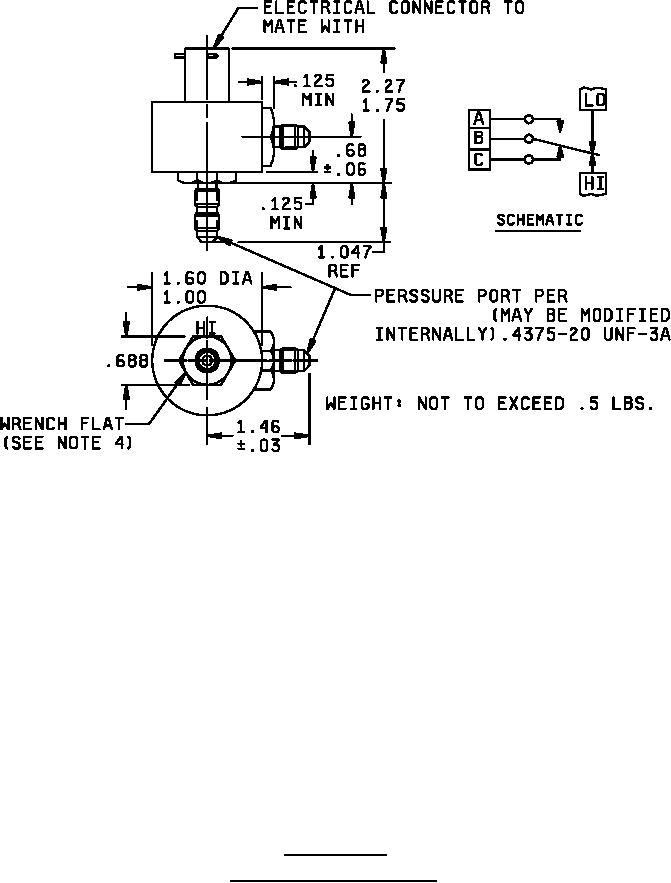

FIGURE 1. Dimensions and configurations. - continued
3
