INCH-POUND
MIL-DTL-5423/5F
17 February 2009
SUPERSEDING
MIL-DTL-5423/5E
4 February 2008
DETAIL SPECIFICATION SHEET
BOOT, DUST AND WATER SEAL, TYPE A (FOR TOGGLE SWITCHES),
STYLE 7 (ONE HOLE MOUNTING, SUBMINIATURE, ENCLOSED)
This specification sheet is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-5423.
Inches
mm
.005
0.13
.010
0.25
.020
0.51
.105
2.67
.250
6.35
.375
9.53
Dimensions ± .015 (0.38)
PIN
Size
M5423/05-
A
B
C
D ± .005 (0.13)
1
.486 (12.34)
.345 (8.76)
.172 (4.37)
.070 (1.78)
01
2
.391 (9.93)
.270 (6.86)
.141 (3.58)
.070 (1.78)
02
NOTES:
1.
Dimensions are in inches.
2.
Millimeters are in parentheses.
3.
Metric equivalents are given for general information only and are based upon 1 inch = 25.4 mm.
4.
Unless otherwise specified, tolerances are ±.015 (.38 mm).

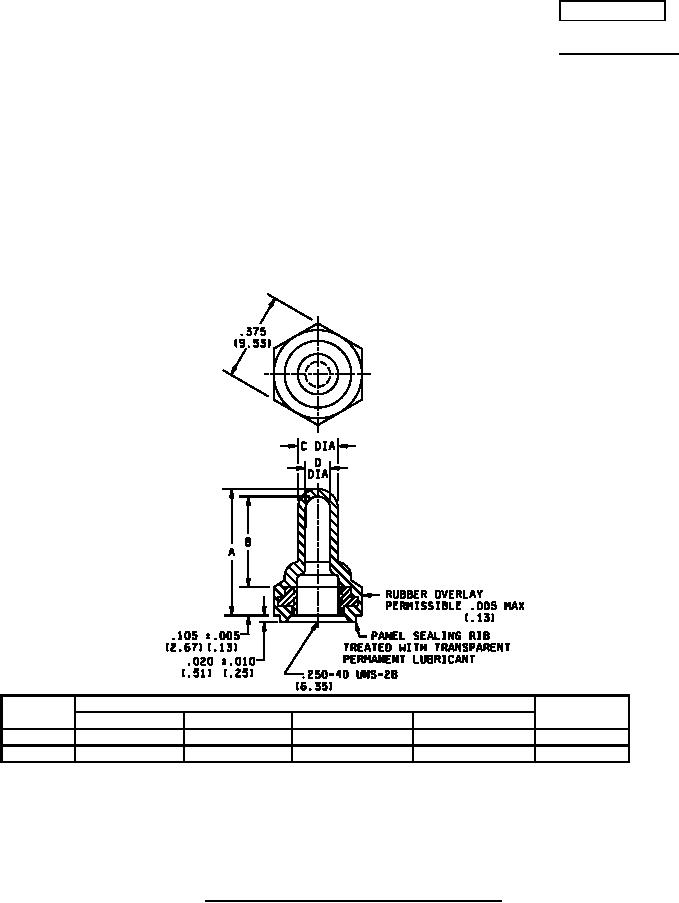

FIGURE 1. Dimensions and configuration boot type A, style 7.
FSC 5930
AMSC N/A
