INCH-POUND
MIL-DTL-5423/10E
17 February 2009
SUPERSEDING
MIL-DTL-5423/10D
4 February 2008
DETAIL SPECIFICATION SHEET
BOOTS, DUST AND WATER SEAL, TYPE B (FOR PUSH-BUTTON SWITCHES),
STYLE 4 (ONE-HOLE MOUNTING, MINIATURE, DRILLED PANEL)
This specification sheet is approved for use by all Departments and Agencies of the Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification sheet and MIL-DTL-5423.
Inches
mm.
Inches
mm.
Inches
mm.
Inches
mm.
.005
0.13
.020
0.51
.072
1.83
.188
4.78
.010
0.25
.022
0.56
.094
2.39
.203
5.16
.015
0.38
.031
0.79
.141
3.58
.312
7.92
.016
0.41
.062
1.57
.156
3.96
.375
9.53
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.015.

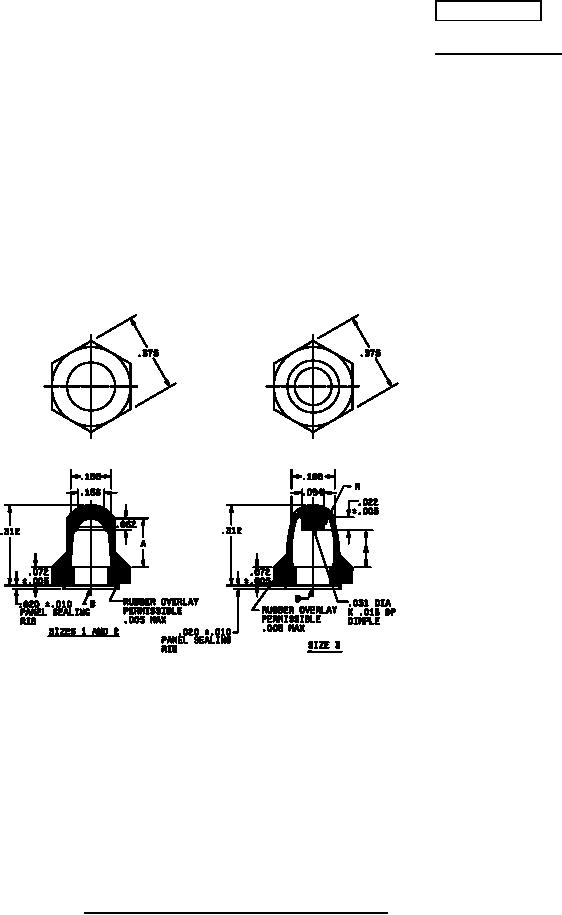

FIGURE 1. Dimensions and configuration boots type B, style 4.
FSC 5930
AMSC N/A
