MIL-DTL-28827-1 Switch, Thermostatic \(Volatile Liquid\), Hermetic Sealed, Single Pole Double Throw \(Spdt\), Medium Response Time

Pages 1 - 2 - 3 - 4 - 5 - 6


MIL-DTL-28827/1C
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified tolerances are ±.005.

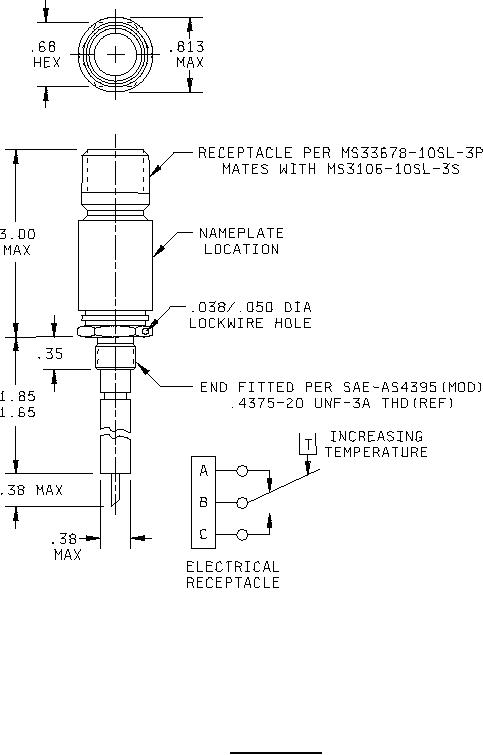

FIGURE 2. Configuration 2.
2
