A-A-55422 Adapter, Switch Actuator \(For Miniature Basic Sensitive Switches\)This commercial item description \(CID\) covers the general requirements for switch actuator miniature basic sensitive switches. Actuators covered by this CID are designed to mate with miniature basic sensitive switches such as MIL-PRF-8805/27 or similar items.

Pages 1 - 2 - 3 - 4 - 5

A-A-55422A

NOTES:

1. Dimensions are in millimeters.

2. Unless otherwise specified, tolerance is � 0.38 mm (.015) and � 2� for angles.

3. The U.S. government preferred system of measurement is the metric SI system. However, since

this item was originally designed using inch-pound units of measurement, in the event of conflict

between the metric and inch-pound units, the inch-pound units shall take precedence.

4. Mounting holes will accept pins or screws of 2.84 mm (.112) maximum diameter.

5. Mounting hardware is furnished with the actuator, unassembled.

6. Operating point dimension is taken at the top of the roller.

7. Switches are not included with actuators.

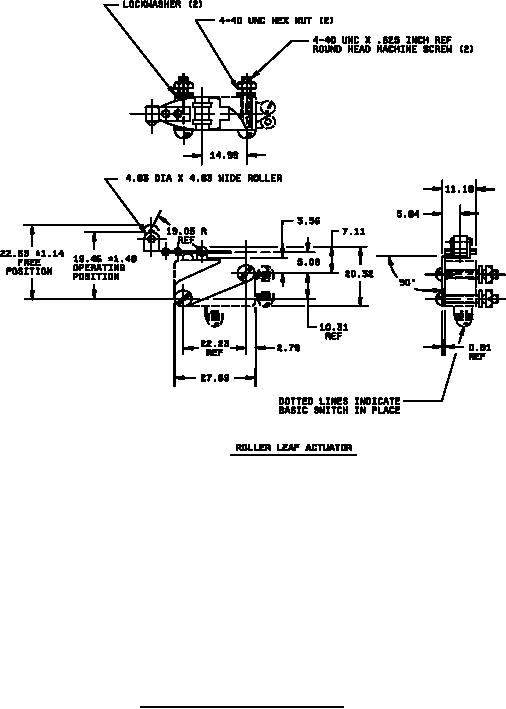

FIGURE 1. Configuration and dimensions � Continued.
