MIL-PRF-8805/82E
Inches
mm
Inches
mm
Inches
Mm
.001
.03
.125
3.18
.432
10.97
.002
.05
.161
4.09
.515
13.08
.003
.08
.185
4.70
.543
13.79
.005
.13
.194
4.93
.578
14.68
.007
.18
.234
5.94
.582
14.78
.010
.25
.250
6.35
.72
18.30
.015
.38
.360
9.14
1.000
25.40
.02
.50
.370
9.40
1.200
30.50
.030
.76
.390
9.91
1.390
35.31
.055
1.40
.393
9.98
1.570
39.88
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Unless otherwise specified, tolerances are ±.02 (0.51 mm) for two place decimals and ±.005 (.13
mm) for 3 place decimals.
4. Switch configuration optional provided dimensions specified are not exceeded.

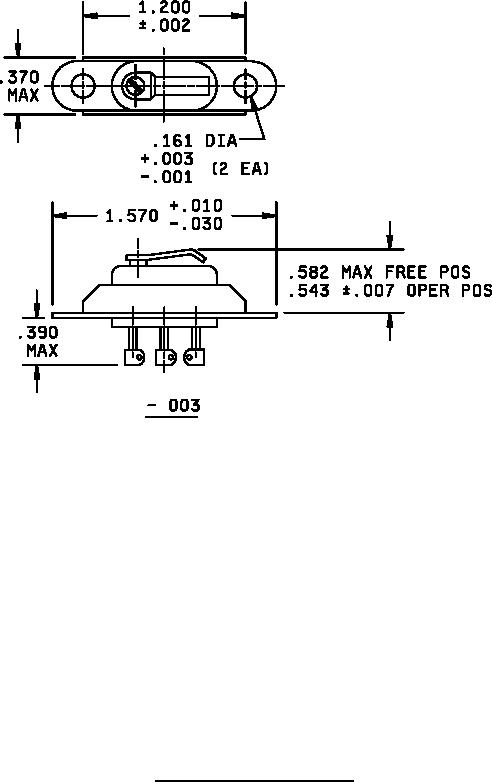

FIGURE 1. Dimensions and configuration - continued
2
