INCH-POUND
MIL-DTL-15743/4C
28 February 2007
SUPERSEDING
MIL-DTL-15743/4B
26 November 2002
DETAIL SPECIFICATION SHEET
SWITCHES, ROTARY, ENCLOSED, SUBMERSIBLE (15 FEET),
SNAP ACTION, 125 VOLTS ALTERNATING CURRENT, 10 AMPERE,
SYMBOLS 805.1 (4PST), 857 (TPDT)
This specification is approved for use by all Departments and Agencies of the
Department of Defense.
The requirements for acquiring the product described herein shall consist of this specification and the
latest issue of MIL-DTL-15743.

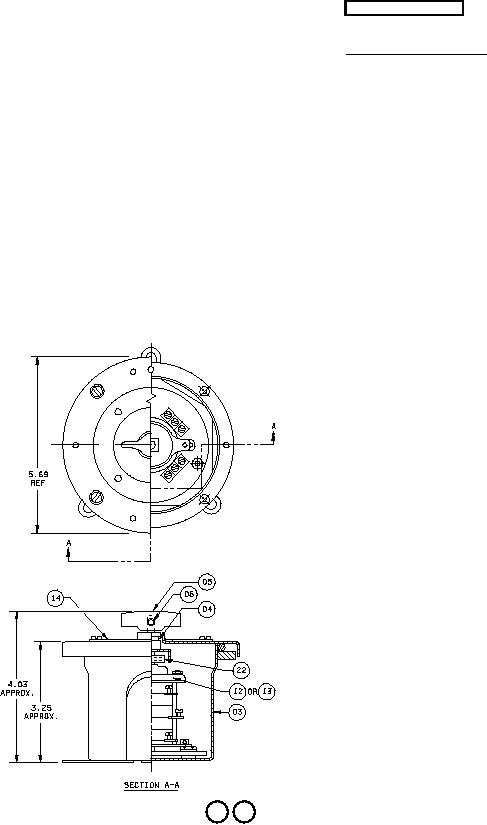

FIGURE 1 Switch, enclosed, 01 02
(-002 shown)
NOTES:
1. All dimensions in inches.
2. Unless otherwise specified herein, tolerances shall be as follows:
Two place decimals - plus or minus 0.02.
Three place decimals - plus or minus 0.005.
Angular dimensions - plus or minus 30 minutes.
