INCH-POUND
MIL-DTL-15291/13B
6 February 2006
SUPERCEDING
MIL-S-15291/13A(SH)
22 July 1991
DETAIL SPECIFICATION SHEET
SWITCHES, ROTARY, SNAP ACTION CLASS 20SR BASE MOUNTED, SIDE CONNECTED
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The complete requirements for acquiring the switch described herein shall consist of this specification and
the latest issue of MIL-DTL-15291.

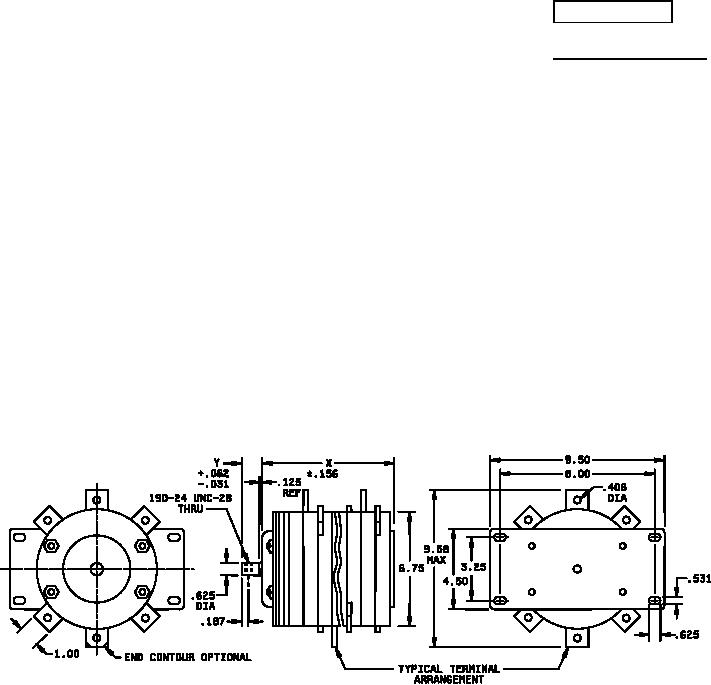

FIGURE 1 Class 20SR base mounted, side connected, with coupler shaft
AMSC N/A
FSC 5930
