INCH-POUND
MIL-DTL-15291/12C
6 February 2006
SUPERCEDING
MIL-S-15291/12B(SH)
22 July 1991
DETAIL SPECIFICATION SHEET
SWITCHES, ROTARY, SNAP ACTION CLASS 20SR FRONT MOUNTED, SIDE CONNECTED
This specification is approved for use by all Departments and Agencies of the Department of Defense.
The complete requirements for acquiring the switch described herein shall consist of this specification and
the latest issue of MIL-DTL-15291.
NOTES
1. Dimensions are in inches.
2. Unless otherwise specified, tolerance is plus or minus 0.015

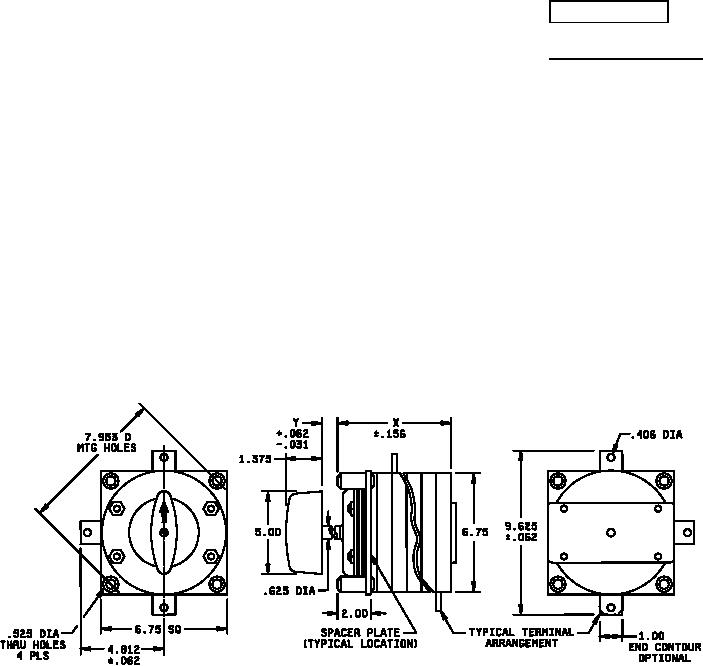

FIGURE 1 Class 20SR switch
AMSC N/A
FSC 5930
